Faster Hydraulic Coupler Kit for John Deere 20, 30, 40 Series, Push-Pull Coupler
Faster Hydraulic Coupler Kit for John Deere 20, 30, 40 Series, Push-Pull Coupler
Faster Hydraulic Coupler Kit for John Deere 20, 30, 40 Series, Push-Pull Coupler
Item #: 8302335
Compact push-pull coupler for applications with higher flow rate and limited space. Connectable under residual pressure. Reduced dimensions, 15mm shorter than standard version. Can be screwed directly into valve ports or rigid pipes.
- Updated coupler design, push-pull coupling
- Easy installation
- Additional o-ring installed to prevent premature leaking
- Breakaway function

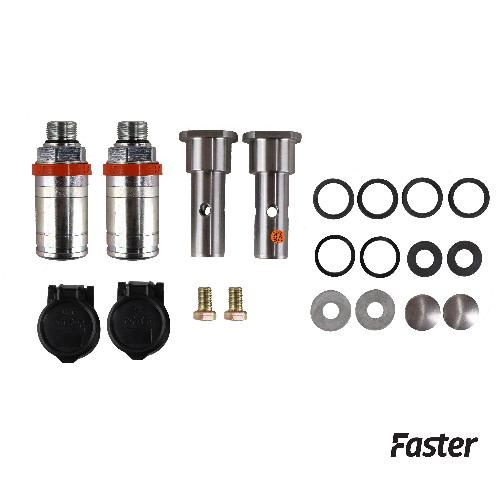

Includes:
- (2) Couplers, use ##HR8302335## for replacement coupler
- (2) Internal Adapters
- (2) ##8302209## Dust Caps
- Bolts, O-Rings & Seals
$345.32
Product Details
Product Specifications
| Body Size | 1/2" Series |
|---|---|
| ISO | 7241A |
| New/Reman | New |
| Quality | Genuine |
| Sold As | Each |
| Sold As | Pkg. of 2 |
| Style | Push-Pull |
| Thread Size | Male; 22mm x 1.5" ORB |
| Warranty | 1 Year |
Fits Models
John Deere
Tractor
1020103011301520153016302020 - USA Models2030 - USA Models2040 - USA Models213022402440252026302640284029403010 - For Machines Equipped w/ Dual Block Only!30203030 - Utility Tractors313040004010 - For Machines Equipped w/ Dual Block Only!40204030404042304240432044304440452046204630464048405020603070207520 - Tractor Yr. 1972 - 19758430 - Tractor Yr. 1975 - 1978844086308640
