Item #: R94658N

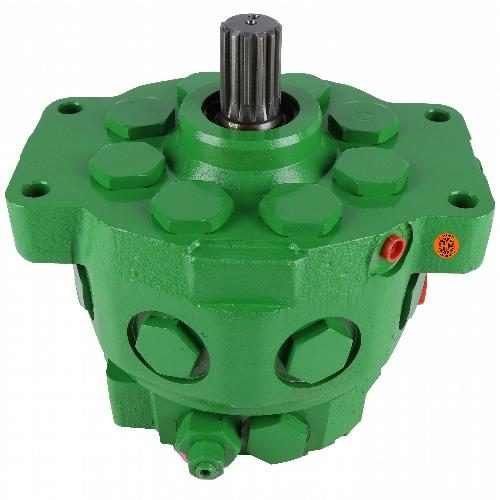

Hydraulic Pump, 19 GPM, Serialized
8 piston, serialized pump. Pressure set to OEM specifications & flow tested at operating temperature in our Iowa facility.
$1,361.14
Product Details
Cross-Reference Numbers
- AR39695
- AR97872
- R94658NH
- R94658
- AR90459
- AR94660
Product Specifications
| Dimensions | [A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 1-1/16" Pressure; [D] 7/8" Cooler |
|---|---|
| Displacement | 3.0 CI / REV |
| Flow Rate | 19 GPM |
| Location | Engine |
| New/Reman | New |
| Shaft | Splined |
| Sold As | Each |
| Warranty | 1 Year |
Fits Models
John Deere
Tractor
1640 - Splined Shaft Pump1830 - Splined Shaft Pump1840 - Splined Shaft Pump2030 - Splined Shaft Pump, Tractor Manufactured in Waterloo, Iowa.2040 - Splined Shaft Pump, Models Produced in Mannheim, Germany.2040S - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2130 - Splined Shaft Pump2140 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2155 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2350 - Splined Shaft Pump2355 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2440 - Splined Shaft Pump2520 - Splined Shaft Pump; 4-Piston Splined Shaft Pump is Original Pump for this Model - No Core Credit Will Be Issued on These Pumps.2550 - Splined Shaft Pump2555 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2630 - Splined Shaft Pump2640 - Splined Shaft Pump2750 - Splined Shaft Pump2755 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2840 - Splined Shaft Pump2855N - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.2940 - Splined Shaft Pump2950 - Splined Shaft Pump2955 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.300 - Splined Shaft Pump3010 - Splined Shaft Pump; Seal Drain Kit ##R39810## is required for machines not previously updated.3020 - Synchro-Range & Powershift Models3030 - Splined Shaft Pump3040 - Splined Shaft Pump3050 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3055 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3130 - Splined Shaft Pump3140 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3150 - Splined Shaft Pump3155 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3255 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3350 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.3640 - Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity.400 - Splined Shaft Pump4000 - Synchro-Range & Powershift Models401 - Splined Shaft Pump4010 - Splined Shaft Pump; Seal Drain Kit ##R39810## is required for machines not previously updated.4020 - Synchro-Range & Powershift Models4030 - Splined Shaft Pump4040 - w/o Power Front Wheel Assist4050 - Splined Shaft Pump4055 - Splined Shaft Pump4230 - w/o Power Front Wheel Drive4240 - w/o Power Front Wheel Assist4250 - Splined Shaft Pump4255 - Splined Shaft Pump4320 - S/N 014560 and Below, w/o Power Front Wheel Drive4430 - w/o Power Front Wheel Drive4440 - w/o Power Front Wheel Assist4450 - Splined Shaft Pump4455 - Splined Shaft Pump4520 - w/o Power Front Wheel Drive4620 - w/o Power Front Wheel Drive4630 - w/o Power Front Wheel Drive4640 - w/o Power Front Wheel Assist4840 - Splined Shaft Pump5010 - Splined Shaft Pump; Seal Drain Kit ##R39810## is required for machines not previously updated.5020 - Splined Shaft Pump6030 - Splined Shaft Pump7020 - Splined Shaft Pump7520 - 1972 - 75. Splined Shaft Pump
